Electrical Control Panel - PCC
The Power Control Centre (PCC)’s are carefully designed, wired, tested and factory assembled, with electrical equipment installed inside.
specification :
Sheet steel : 14 SWG / 2.0 mm CRCA for enclosure outer shell 16 SWG / 1.6 mm CRCA for panel doors
Surface finish : pre treated 7-tank process powder coated or spray
painted - polyurethane
Bus bar supports : SMC / DMC insulators
Partition : 3.2 mm FRP Sheet.
Shrouding : 1.6 mm FRP Sheet
Incomer : upto 5000 A, TPN / 4P Air circuit breaker - 70 KA
Outgoing : As per customer requirement - switch fuse unit (S.F.U.) or
Moulded case circuit breaker (M.C.C.B.)
Controls : Illuminated push buttons with LED for ON & OFF indications - LED pilot Lamps for power ON, motor on & tripre...
These are used in most demanding industries with remote input / output and communication bus to control hundreds of inputs and outputs.

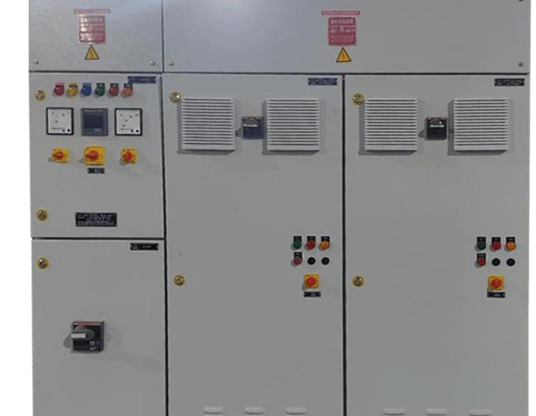

Electrical Control Panel - MCC
Main Motor Control Centre (MCC) panel & other distribution panels with international standards in power control are available.
Our range of MCC is capable to feed larger loads to support high capacity industrial motors. We are capable to manufacture MCC's with any specifications provided by customer.

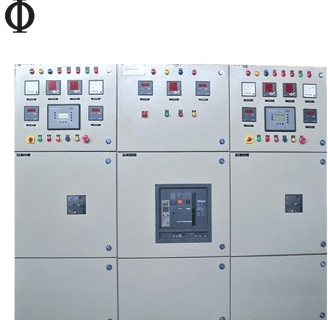

Electrical Control Panel - DG Synchronisation Panel
We are actively engaged in manufacturing and export of high performance DG Synchronization Panel which comes complete with Controlling & Protection Relays capable of synchronizing of more than one DG sets / with Mains & DG and with necessary protections.
The offered product is precisely designed and manufactured by utilizing optimum quality raw material and sophisticated technology. Furthermore, we offer this DG Synchronization panel in various technical specifications at affordable prices.
ü Applications : Control, Synchronizing, Load Sharing / Load management of DG Sets through control relay with or without PLC based cum manual
ü System : 3 Phase, 3 or 4 wire, 50Hz

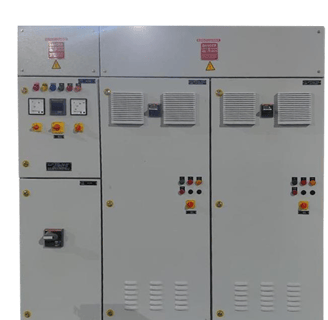

Automatic PFIC Panels
We Specialise in manufacturing APFIC Panels as per client specifications from 50-1000 KVAR.
We offer MPP/APP type Power Capacitors of EPCOS / reputed makes.
We offer APFIC Panels with Detuned Aluminium / Copper reactors of EPCOS / reputed makes. SVG and Hybrid type APFIC Panles are also offered.

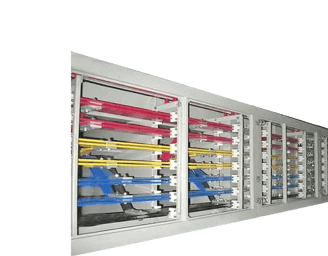

LV Busducts
We have type tested our Busduct / Raising mains for Short circuit withstand capacity of 50kA RMS for 1 second at Central Power Research Institute, Bhopal, India.
Specifications
üAir insulated, Non-segregated type
üBusduct ratings of upto 4000A
üShort Circuit rating of 50KA for 1 sec RMS
üAlso non-magnetic aluminium enclosures
üFlexible Terminations
üFlexible In-line Connections
Technical Specifications
üRated Service Voltage : 415 V
üRated Frequency : 50 Hz
üBusbar System : Three Phase and Neutral
üRated Insulation Voltage : 660 V
üMax. Rating Of Busbars : 4000 A and higher
üFault Level Withstand : 50 kA RMS for 1 second
Rising Mains
üAir insulated, Non-segregated type Rising Mains
üIndoor Vertical Erection type
üRising Main ratings of upto 4000A
üShort Circuit rating of 50KA for 1 sec RMS
üFixed type Tap off Boxes
üFlexible In-line Connections
üFire Barriers
üWall supports

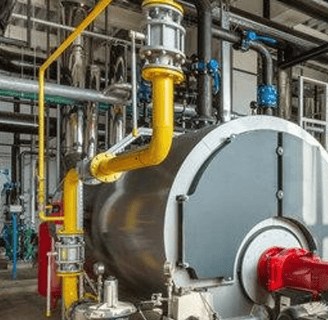

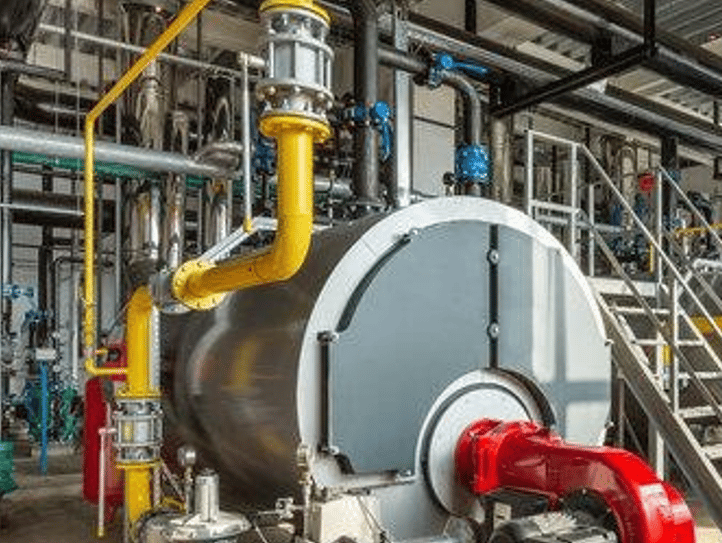

Electrical Power Distribution and Energy Management of Boiler
We offer trouble shooting and related services for all electrical equipment , power distribution and energy management related to industrial Boilers.
We are specializing in Brown’s Gas Oxyhydrogen equipment to optimize combustion support of industrial boilers & related application.
